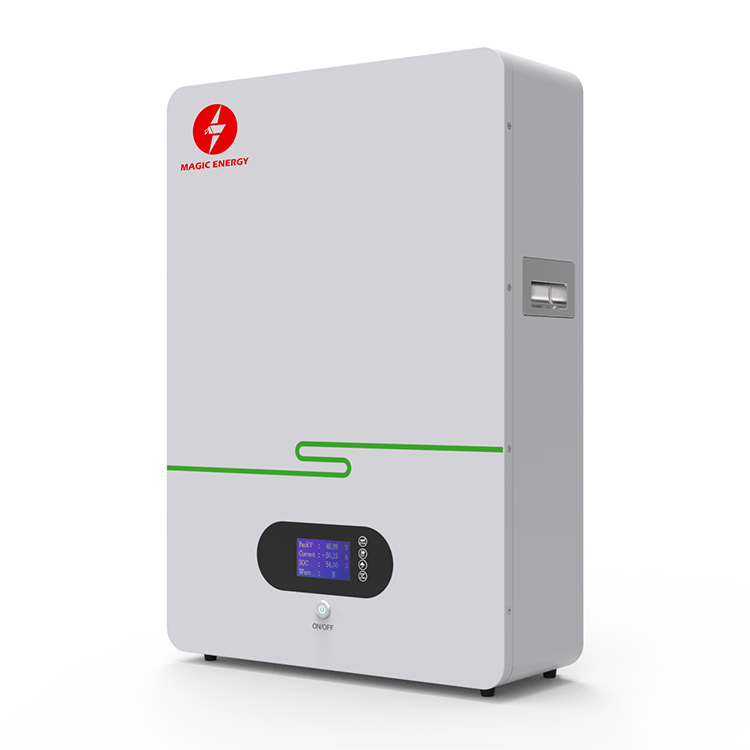

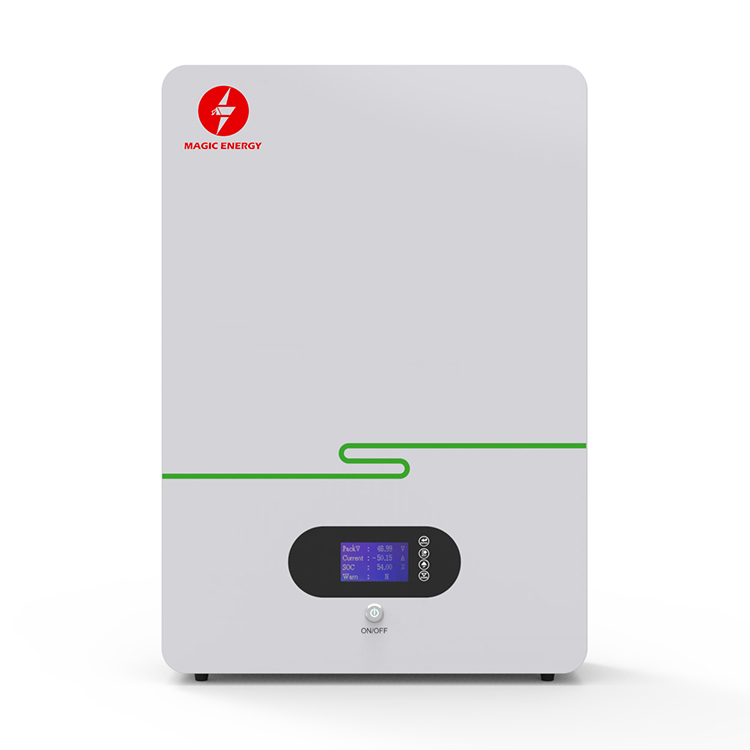

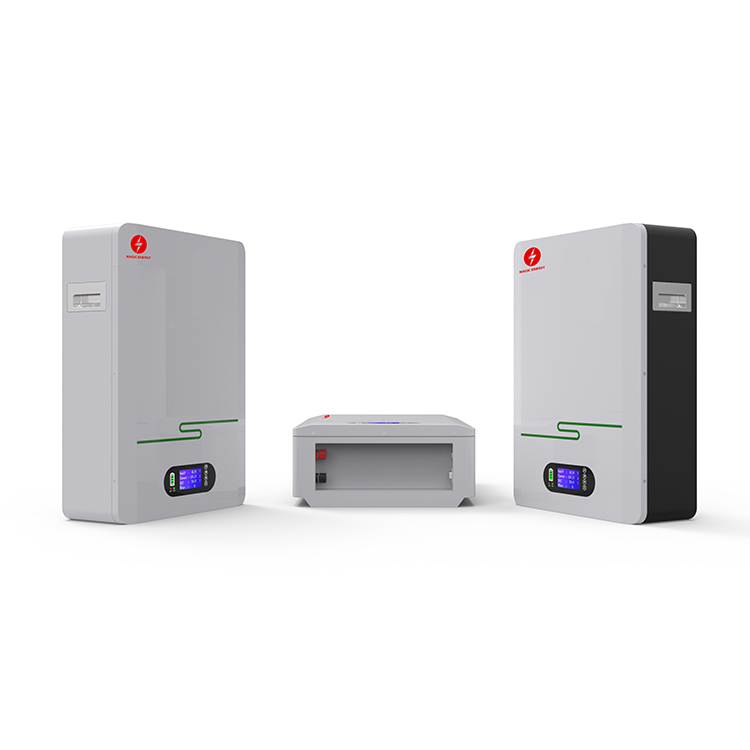

Powerwall Home

• CellType:LFP

• Charge Current:50A

• Nominal Voltage:51.2V

• Nominal Capacity:200Ah

• Internal Resistance:^30mQ

• Standard Charge Voltage:58.4V

• Discharge Cut-off Voltage:45V

• Max Discharge Current:lOOA

• Charge Temperature Range:0 ~ 60°C

• Discharge Temperature Range:-20 ~ 60°C

• Paralles Function:Support 8 units in parallels

• Cycle Life:>5OOO cycles @ 80% DOD, 25°C, 0.5C

• Communication lnterface:RS485 / RSS232 CAN(Optional)

• Product Specification:51.2V 200AH LiFeP04 PowerWall

• Dimensions:673*618*193 mm

-Weight:89KGS
